Pressure Regulators

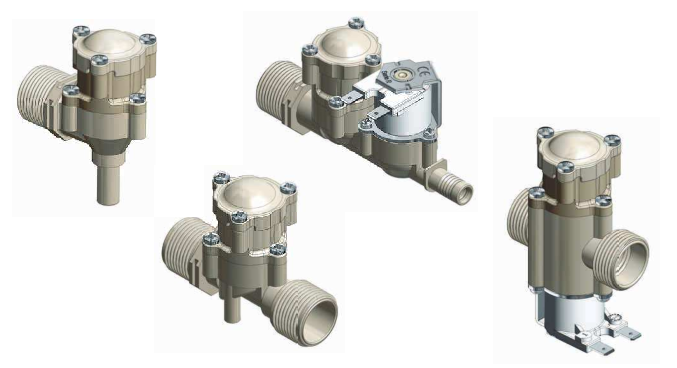

RPE's RPM Series of cost-effective water pressure regulator valves are designed to reduce and stabilise the water inlet pressure to equipment such as domestic appliances, drinks dispensers or coffee machines. Each regulator controls the outlet pressure to a pre-set level with reliability and precision.
In many situations the water supply pressure to an appliance may fluctuate, especially in remote locations or industrial premises. In order to avoid the changing water flow causing variable equipment performance, water hammer or even damage to the appliance itself RPE water pressure regulators can be used to reduce the inlet water supply pressure and maintain it at a constant level within a limited range. These plastic bodied water pressure reducers feature a simple robust single-stage regulator design that offers accurate outlet pressure suitable for most such applications. By offering a range regulators with six different fixed-pressure settings, the required pressure can be specified and the non-adjustable design eliminates possibility of unauthorised tampering with the pressure setting by the end-user.
For added versatility, by using RPE's dual bodies the RPM series pressure regulators can be combined with a solenoid valve, water filter, or flow sensor. For completely modular solutions the functionality of the RPM series is available in the RPE Universal Series.
Pressure Settings
The RPM Series water pressure regulators are available with a choice of 6 nominal pressure settings:
- 0.5 bar (7.25 psi)
- 1.2 bar (17.4 psi)
- 1.5 bar (21.76 psi)
- 2 bar (29 psi)
- 3 bar (43.5 psi)
- 4 bar ( 58 psi)
Note: Pressure settings are factory preset and not user adjustable.
Tolerance +/- 20%
Choice of Inlet and Outlet Connections
By using the established range of R series and R Mini Series bodies the RPM water pressure regulators are available with a wide of inlet and outlet connection styles and sizes:
Male threaded BSP (G) 1/4", 3/8" 1/2", 3/4"
Female threaded BSP (G) 1/4", 3/8" 1/2", 3/4"
Push-fit 6, 8, 10, 15 mm
Hosetail 10, 12 mm
To view the full water pressure regulator brochure click here
Call or email us to discuss your requirements.
